Pneumatic vitès kontwòl tiyo seri konplè

Pneumatic vitès kontwòl tiyo seri konplè - JSC Creole L Kalite & TSC Pouse -Lock reglabl koule regilatè, M / R / NPT / G Opsyon fil.

  • Pwodwi Entwodiksyon

Yuyao Eshiong tiyo Fittings Technologies co, Ltd se youn nan dirijan manifaktirè yo ak founisè nan tiyo pneumatik kontwòl vitès seri plen nan Lachin. Tanpri rès asire an gwo en dirab pneumatik kontwòl vitès tiyo seri plen soti nan faktori nou an. Tout pwodwi Customized yo ak kalite siperyè ak pri konpetitif. Epitou, echantiyon gratis ki disponib.



Paj endepandan sa a gen 4 kalite tiyo pneumatik yon sèl-fason kontwòl vitès, divize an de estrikti debaz: JSC estanda L-tip regilatè koule ak TSC push-lock valv reglabl vitès. Li kouvri kat estanda fil inivèsèl: metrik M, Ameriken NPT, Britanik R taper fil, Ewopeyen BSPP G paralèl tiyo fil, konpatib ak 4 ~ 16mm metrik tib lè PU, rated pou 0 ~ 150 PSI endistriyèl lè konprese.



Tout modèl yo adopte yon sèl -fason throttling konsepsyon, sèlman mete restriksyon sou koule lè tiyo echapman yo jisteman ajiste ekstansyon silenn ak vitès retraksyon, ak plen konsomasyon lè gratis san limitasyon koule. De estrikti diferansye satisfè diferan asanble ak demann ajisteman:

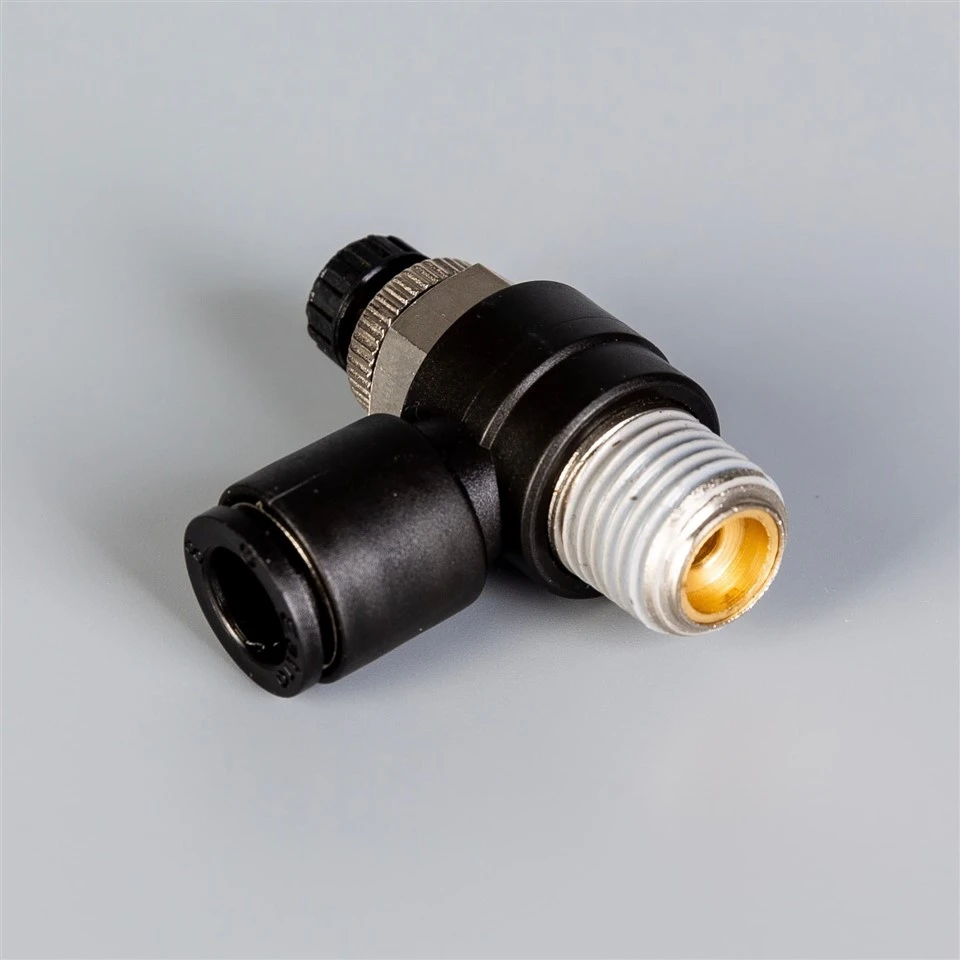

JSC Standard L Speed ​​Valve: Metal amann -akor bouton, kò nwa kontra enfòmèl ant, modèl estanda inivèsèl ak tout opsyon M/R/NPT/G fil;

JSC -GG Thread Vitès Valv: Idantik estrikti entèn kòm JSC, sèlman ekipe ak BSPP G fil sèlman pou Ewopeyen enpòte silenn & zile valv;

TSC Pouse-Lock Speed ​​Valv: Bouton ajisteman gradye ki ka bloke ble pou ranje ouvèti koule kont chanjman vibrasyon apre anviwònman, kò ayestetik blan, ranpli gwosè fil konplè;

TSC-GG Thread Push-Lock Speed ​​​​Valv: Menm estrikti fèmen ak TSC, Customized BSPP G fil pou Inyon Ewopeyen-estanda pò lè G;



Paramèt pèfòmans



Materyèl

Tib konpatibilite

O-RING

Likid

Travay presyon

Presyon negatif

Tanperati

Nylon

Anfòm PU kawotchou

NBR

Air

0-1.0MPa

-29.5 nan Hg / -750 mmHg (10 Torr)

32 ~ 140 degre F / 0 ~ 60 degre



Dimansyon pwodwi:



(Gwosè Custom yo disponib sou demann. Tanpri kontakte nou pou espesifikasyon ki pa nan lis isit la.)

JSC

Estanda L Kalite Vitès Kontwòl Valv

product-724-534

Kalite

Modèl

Kalite

Modèl

Kalite

Modèl

Kalite

Modèl

Tib (mm)

Gason (R)

Tib (pous)

Gason (R)

Tib (pous)

Gason (NPT)

Tib (mm)

Gason (NPT)

JSC04-M5

04

M5

JSC5/32-01

5/32

1/8

JSC5/32-N01

5/32

1/8

JSC04-N01

04

1/8

JSC04-M6

04

M6

JSC5/32-02

5/32

1/4

JSC5/32-N02

5/32

1/4

JSC04-N02

04

1/4

JSC04-01

04

1/8

JSC3/16-01

3/16

1/8

JSC3/16-N01

3/16

1/8

JSC06-N01

06

1/8

JSC04-02

04

1/4

JSC3/16-02

3/16

1/4

JSC3/16-N02

3/16

1/4

JSC06-N02

06

1/4

JSC06-M5

06

M5

JSC1/4-01

1/4

1/8

JSC1/4-N01

1/4

1/8

JSC06-N03

06

3/8

JSC06-M6

06

M6

JSC1/4-02

1/4

1/4

JSC1/4-N02

1/4

1/4

JSC06-N04

06

1/2

JSC06-01

06

1/8

JSC1/4-03

1/4

3/8

JSC1/4-N03

1/4

3/8

JSC08-N01

08

1/8

JSC06-02

06

1/4

JSC1/4-04

1/4

1/2

JSC1/4-N04

1/4

1/2

JSC08-N02

08

1/4

JSC06-03

06

3/8

JSC5/16-01

5/16

1/8

JSC5/16-N01

5/16

1/8

JSC08-N03

08

3/8

JSC06-04

06

1/2

JSC5/16-02

5/16

1/4

JSC5/16-N02

5/16

1/4

JSC08-N04

08

1/2

JSC08-01

08

1/8

JSC5/16-03

5/16

3/8

JSC5/16-N03

5/16

3/8

JSC10-N01

10

1/8

JSC08-02

08

1/4

JSC5/16-04

5/16

1/2

JSC5/16-N04

5/16

1/2

JSC10-N02

10

1/4

JSC08-03

08

3/8

JSC3/8-01

3/8

1/8

JSC3/8-N01

3/8

1/8

JSC10-N03

10

3/8

JSC08-04

08

1/2

JSC3/8-02

3/8

1/4

JSC3/8-N02

3/8

1/4

JSC10-N04

10

1/2

JSC10-01

10

1/8

JSC3/8-03

3/8

3/8

JSC3/8-N03

3/8

3/8

JSC12-N01

12

1/8

JSC10-02

10

1/4

JSC3/8-04

3/8

1/2

JSC3/8-N04

3/8

1/2

JSC12-N02

12

1/4

JSC10-03

10

3/8

JSC1/2-01

1/2

1/8

JSC1/2-N01

1/2

1/8

JSC12-N03

12

3/8

JSC10-04

10

1/2

JSC1/2-02

1/2

1/4

JSC1/2-N02

1/2

1/4

JSC12-N04

12

1/2

JSC12-01

12

1/8

JSC1/2-03

1/2

3/8

JSC1/2-N03

1/2

3/8

JSC14-N01

14

1/8

JSC12-02

12

1/4

JSC1/2-04

1/2

1/2

JSC1/2-N04

1/2

1/2

JSC14-N02

14

1/4

JSC12-03

12

3/8



JSC14-N03

14

3/8

JSC12-04

12

1/2



JSC14-N04

14

1/2

JSC14-01

14

1/8



JSC16-N01

16

1/8

JSC14-02

14

1/4



JSC16-N02

16

1/4

JSC14-03

14

3/8



JSC16-N03

16

3/8

JSC14-04

14

1/2



JSC16-N04

16

1/2

JSC16-01

16

1/8



JSC16-02

16

1/4



JSC16-03

16

3/8



JSC16-04

16

1/2





TSC

Pouse-Bloke Valv Kontwòl Vitès Gradye

product-772-510

Kalite

Modèl

Kalite

Modèl

Kalite

Modèl

Kalite

Modèl

Tib (mm)

Gason (R)

Tib (pous)

Gason (R)

Tib (pous)

Gason (NPT)

Tib (mm)

Gason (NPT)

TSC04-M5

04

M5

TSC5/32-01

5/32

1/8

TSC5/32-N01

5/32

1/8

TSC04-N01

04

1/8

TSC04-M6

04

M6

TSC5/32-02

5/32

1/4

TSC5/32-N02

5/32

1/4

TSC04-N02

04

1/4

TSC04-01

04

1/8

TSC3/16-01

3/16

1/8

TSC3/16-N01

3/16

1/8

TSC06-N01

06

1/8

TSC04-02

04

1/4

TSC3/16-02

3/16

1/4

TSC3/16-N02

3/16

1/4

TSC06-N02

06

1/4

TSC06-M5

06

M5

TSC1/4-01

1/4

1/8

TSC1/4-N01

1/4

1/8

TSC06-N03

06

3/8

TSC06-M6

06

M6

TSC1/4-02

1/4

1/4

TSC1/4-N02

1/4

1/4

TSC06-N04

06

1/2

TSC06-01

06

1/8

TSC1/4-03

1/4

3/8

TSC1/4-N03

1/4

3/8

TSC08-N01

08

1/8

TSC06-02

06

1/4

TSC1/4-04

1/4

1/2

TSC1/4-N04

1/4

1/2

TSC08-N02

08

1/4

TSC06-03

06

3/8

TSC5/16-01

5/16

1/8

TSC5/16-N01

5/16

1/8

TSC08-N03

08

3/8

TSC06-04

06

1/2

TSC5/16-02

5/16

1/4

TSC5/16-N02

5/16

1/4

TSC08-N04

08

1/2

TSC08-01

08

1/8

TSC5/16-03

5/16

3/8

TSC5/16-N03

5/16

3/8

TSC10-N01

10

1/8

TSC08-02

08

1/4

TSC5/16-04

5/16

1/2

TSC5/16-N04

5/16

1/2

TSC10-N02

10

1/4

TSC08-03

08

3/8

TSC3/8-01

3/8

1/8

TSC3/8-N01

3/8

1/8

TSC10-N03

10

3/8

TSC08-04

08

1/2

TSC3/8-02

3/8

1/4

TSC3/8-N02

3/8

1/4

TSC10-N04

10

1/2

TSC10-01

10

1/8

TSC3/8-03

3/8

3/8

TSC3/8-N03

3/8

3/8

TSC12-N01

12

1/8

TSC10-02

10

1/4

TSC3/8-04

3/8

1/2

TSC3/8-N04

3/8

1/2

TSC12-N02

12

1/4

TSC10-03

10

3/8

TSC1/2-01

1/2

1/8

TSC1/2-N01

1/2

1/8

TSC12-N03

12

3/8

TSC10-04

10

1/2

TSC1/2-02

1/2

1/4

TSC1/2-N02

1/2

1/4

TSC12-N04

12

1/2

TSC12-01

12

1/8

TSC1/2-03

1/2

3/8

TSC1/2-N03

1/2

3/8

TSC14-N01

14

1/8

TSC12-02

12

1/4

TSC1/2-04

1/2

1/2

TSC1/2-N04

1/2

1/2

TSC14-N02

14

1/4

TSC12-03

12

3/8



TSC14-N03

14

3/8

TSC12-04

12

1/2



TSC14-N04

14

1/2

TSC14-01

14

1/8



TSC16-N01

16

1/8

TSC14-02

14

1/4



TSC16-N02

16

1/4

TSC14-03

14

3/8



TSC16-N03

16

3/8

TSC14-04

14

1/2



TSC16-N04

16

1/2

TSC16-01

16

1/8



TSC16-02

16

1/4



TSC16-03

16

3/8



TSC16-04

16

1/2





JSC-G

BSPP G Thread L Kalite Valv kontwòl vitès

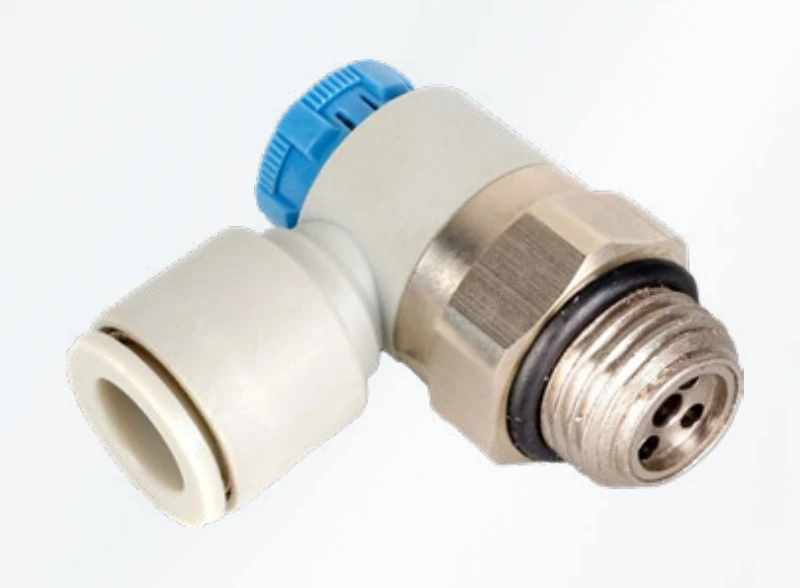

TSC-G

BSPP G Thread Pouse-Loke vitès kontwòl valv

product-608-454

product-800-588

Kalite

Modèl

Kalite

Modèl

Tib (mm)

Gason (G)

Tib (mm)

Gason (G)

JSC04-M5

04

M5

TSC04-M5

04

M5

JSC04-M6

04

M6

TSC04-M6

04

M6

JSC04-01

04

1/8

TSC04-G01

04

1/8

JSC04-02

04

1/4

TSC04-G02

04

1/4

JSC06-M5

06

M5

TSC06-M5

06

M5

JSC06-M6

06

M6

TSC06-M6

06

M6

JSC06-01

06

1/8

TSC06-G01

06

1/8

JSC06-02

06

1/4

TSC06-G02

06

1/4

JSC06-03

06

3/8

TSC06-G03

06

3/8

JSC06-04

06

1/2

TSC06-G04

06

1/2

JSC08-01

08

1/8

TSC08-G01

08

1/8

JSC08-02

08

1/4

TSC08-G02

08

1/4

JSC08-03

08

3/8

TSC08-G03

08

3/8

JSC08-04

08

1/2

TSC08-G04

08

1/2

JSC10-01

10

1/8

TSC10-G01

10

1/8

JSC10-02

10

1/4

TSC10-G02

10

1/4

JSC10-03

10

3/8

TSC10-G03

10

3/8

JSC10-04

10

1/2

TSC10-G04

10

1/2

JSC12-01

12

1/8

TSC12-G01

12

1/8

JSC12-02

12

1/4

TSC12-G02

12

1/4

JSC12-03

12

3/8

TSC12-G03

12

3/8

JSC12-04

12

1/2

TSC12-G04

12

1/2

JSC14-01

14

3/8

TSC14-G03

14

3/8

JSC14-02

14

1/2

TSC14-G04

14

1/2

JSC14-03

16

3/8

TSC16-G03

16

3/8

JSC14-04

16

1/2

TSC16-G04

16

1/2

Anbalaj:

1.PE sak ak doub anbalaj katon corrugated;

2.Katon gwosè: 35 * 25 * 35cm;

3.Packaging kantite diferan nan mitan modèl. Tanpri tcheke avèk sèvis kliyan nou an.




Karakteristik kle


Estanda BSPP G paralèl tiyo fil, konplètman konpatib ak ekipman pneumatik Ewopeyen an.

Fil an kwiv nikèl-plake ak bag O-pre-monte, pa gen okenn kasèt PTFE obligatwa.



Pouse estanda-nan konsepsyon bloke, yon sèl-dezyèm asanble ak demonte.

Ranpli tout -size gwosè pou tout tiyo pneumatik prensipal yo.

Antretyen ak Swen chak jou



  • Koupe tib pwòp epi ebavure anvan ensèsyon.
  • Sere fil la modere; evite twòp-sere.
  • Enspekte pou fwit apre chanjman presyon/tanperati.
  • Lè demonte, peze lage bag respire epi rale tib dwat deyò.



Kesyon yo poze souvan



K: Ki jan yo chwazi ant seri JSC ak TSC?

A: Low-vibrasyon òdinè transporteur/gripper jig, pri priyorite → chwazi estanda JSC ki pa -modèl fèmen;
Stamping machin, gwo -liy pwodiksyon Vibration, alontèm-vitès silenn fiks san koule koule → chwazi modèl TSC gradye ki fèmen.



Kat pwodwi yo sou paj endepandan sa a kouvri JSC estanda L kalite tiyo kontwòl vitès, JSC -G BSPP G fil koule regilatè, TSC pouse-lock gradye valv vitès, TSC-G BSPP G fil lockable valv gaz, sa a seri konplè nan pneumatik yon sèl-fason kontwòl vitès tiyo sipòte kat mondyal inivèsèl fil elektrik PT / 1 GPU / 2 mm konpatib / 1 GPU tib lè, aji kòm tout -nan- yon sèl solisyon ki gen ladan ajisteman silenn tanpon lè koule, silenn demaraj-silenn regilatè tanpon, fòm L silenn lè vitès kontwòl valv, anti-vibration bloke valv pneumatik gaz, BSPP G fil silenn vitès regilatè, regilatè multith{read/{dR0}} opsyon, PU kawotchou rapid konekte vitès kontwòl Fitting, ajisteman koule lè silenn rapid konekte jwenti.
